These single-channel devices effectively protect machines with rolling-element bearings from damages by e.g. unbalance or misalignment. They are ideally suitable for monitoring e.g. fans, blowers, pumps, decanters, separators and mills.

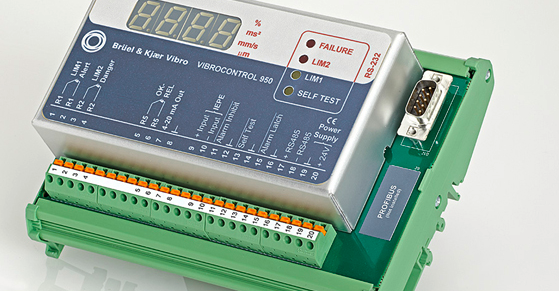

VIBROCONTROL 950 is connected to constant-current sourced accelerometers; VIBROCONTROL 960 is connected to vibration velocity sensors. The instruments are mounted on a DIN rail in machine cabinets or in optional field housings. A user software enables easy and flexible set-up.

• Input of accelerometers (CCS): VIBROCONTROL 950
• Input of velocity sensors: VIBROCONTROL 960
• 2 relays (Alarm & Danger) and 1 OK relay
• Analog output
• Large integrated display
• Vibration levels in realtime
• Installation: DIN Rail mounting or optional field housing
• Power supply +24 VDC
• Machine protection according to DIN/ISO 10816-3
• Software: Compact Setup

Recommended B&K Vibro accelerometer: AS-062
Recommended B&K Vibro velocity sensor: VS-068 or VS-069
